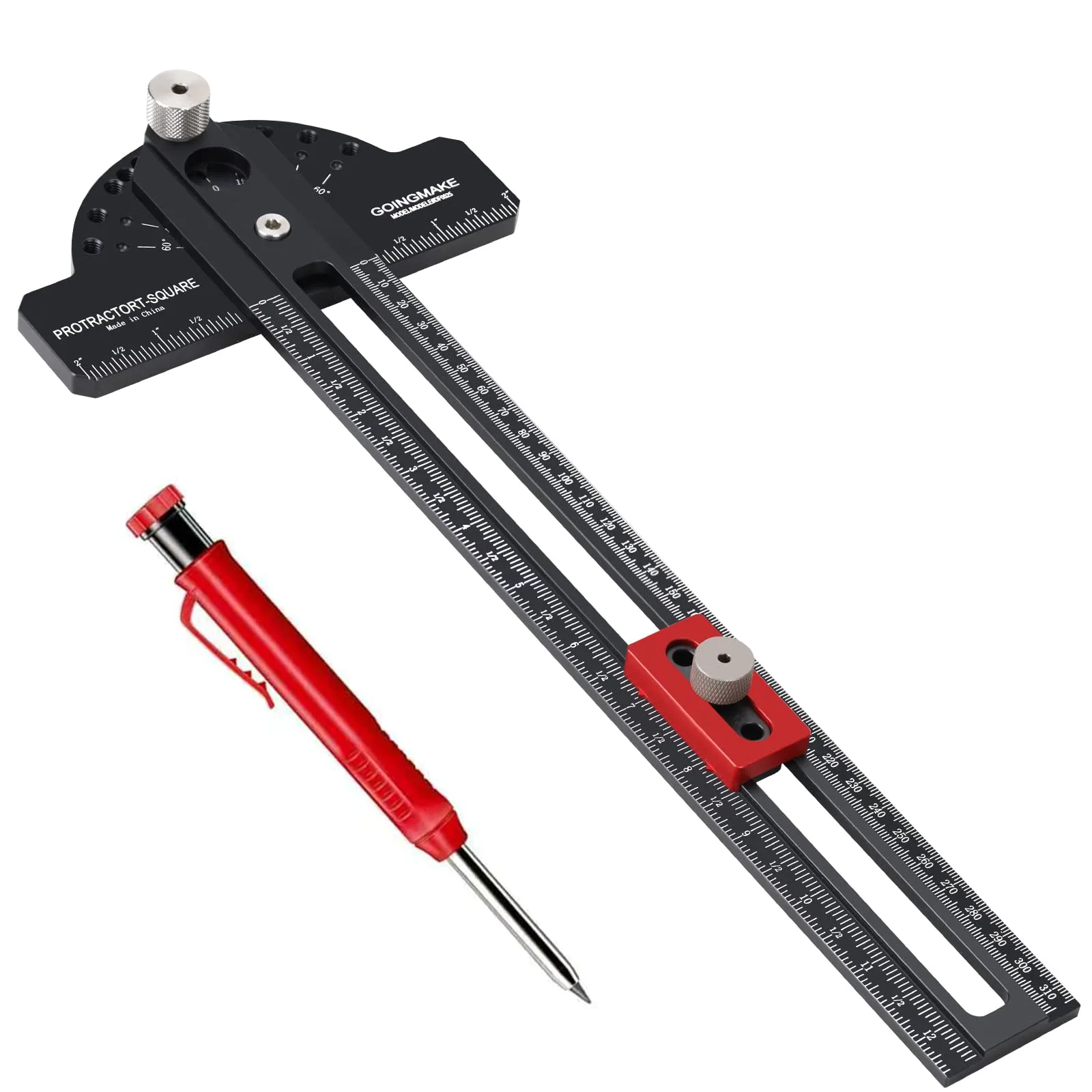

GOINGMAKE Adjustable Angle T-Square, 12 in
Adjustable head locks seven layout angles.
- Length
- 12 in
- Angles
- 0, 15, 22.5, 30, 45, 60 and 90°
- Scales
- Inch and mm, laser engraved
- Marking
- Sliding scribe guides and a pencil
Description
Description
Marking the cut lines for a hexagon box or a 22.5° frame corner on the board itself is quicker with the angle already in the tool. The Adjustable Angle T-Square, 12 in, has a head that turns and locks at 0, 15, 22.5, 30, 45, 60 and 90°. Loosen the screw, rotate to the angle, and tighten it again.
At 90° it works as an ordinary square for crosscut lines and checking a corner. The blade carries laser-engraved inch and mm scales, so the length of a line reads straight off the tool. The body is aluminum alloy, the same material as the rest of our layout tools.
Sliding scribe guides on the blade, with the included pencil, draw lines parallel to an edge at any distance along its 12 in. Set a guide, rest the pencil in it, and run the head along the board for a dado shoulder or a rabbet line.
In the box
In the box
- 12 in adjustable angle T-square
- Woodworking pencil
Specifications
The GOINGMAKE Adjustable Angle T-Square, 12 in, by the numbers
| Length | 12 in |
|---|---|
| Angles | 0, 15, 22.5, 30, 45, 60 and 90° |
| Scales | Inch and mm, laser engraved |
| Marking | Sliding scribe guides and a pencil |
| Material | Aluminum alloy |
| Model number | 0525 |
In the box
- 12 in adjustable angle T-square
- Woodworking pencil
The Adjustable Angle T-Square, 12 in sits with 3 other jigs on the squares and marking shelf of the GOINGMAKE range.
Questions
Questions about the GOINGMAKE Adjustable Angle T-Square, 12 in
Which angles can you lock on the GOINGMAKE adjustable T-square?
0, 15, 22.5, 30, 45, 60 and 90°. Loosen the screw at the head, rotate it to the angle you need and tighten it again before you draw.
Can you draw parallel lines with the GOINGMAKE 12 in angle square?
Yes. Set a sliding scribe guide on the blade, put the included pencil in it and run the head along the edge of the board.
